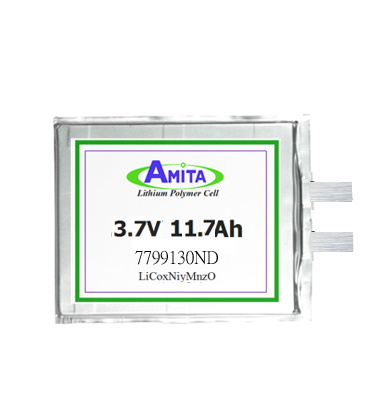

7799130ND



11.7 Ah/LiMn2O4


01
Model No.
7799130ND
02
Positive Material
LiMn2O4
03
Typical Capacity
11.7 Ah
04
Cycle Life
>2000
05
Voltage
Average
3.7 V
Max.
4.2 V
Min.
2.8 V
06
Dimension
Thickness/Height
7.90~8.30 mm
Width
98.0 mm
Length
130.0 mm
07
Weight
< 221 g
08
Initial Internal Resistance
< 4 mΩ
09
Energy/Rated Capacity
44.7 Wh
10
Energy Density
by Weight
220 Wh/Kg
by Volume
440 Wh/L
11
Charge
Max.C-rate
1C
12
Discharge
Max. Continuous C-rate
3C
Transient Peak Current
8C
13
Operating Temperature
Charging
0~45℃
Discharging
-20~55℃
14
Storage Temperature
-20~40℃
15
Humidity Range
< RH 45~85%
