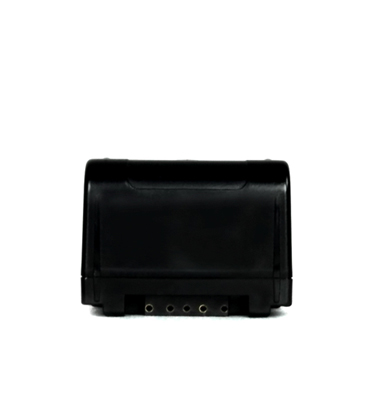

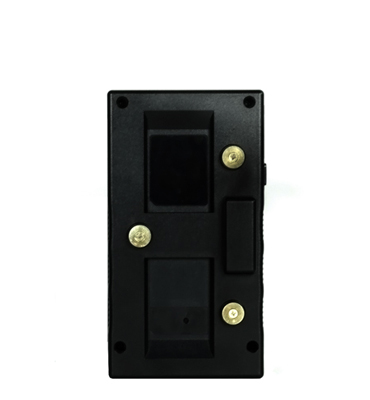

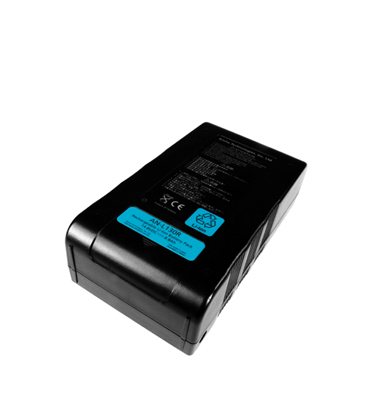

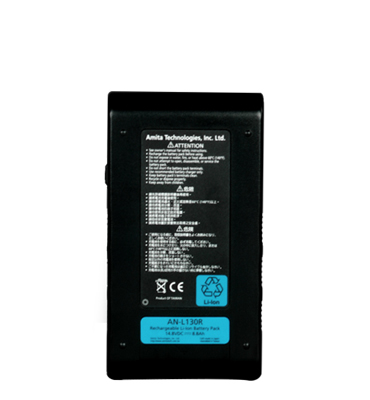

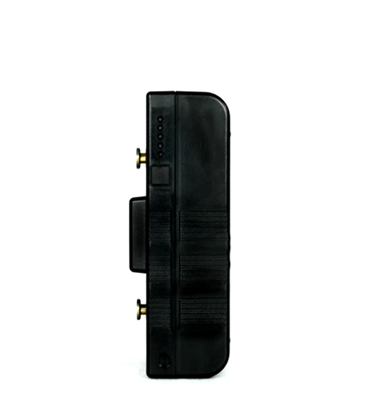

AN-L100R



(1) Integrate SBS-Compliance Gas Gauge IC

(2) Durable impact-resistant PC housing
 meets UL94-V0 rating

(3) Compliance with UL & CE standard

(4) Splash / scratch-resistant

(5) Support DC Power Jack for travel
 charger

(6) No memory effect

(7) Terminal laminated with gold to reduce
 impedance

(8) Ergonomic design for easy grasping

(9) Patented balancer to prolong the life of
 the Battery Pack


01
Model No.
AN-L100R
02
Video Camera Type
Anton Bauer Gold-Mount
03
Component Cell
Rechargeable Li-Ion Cylindrical Cells (Made By Japanese Manufacturers
04
Approximate Capacity
95Wh
05
Voltage
AC Output
14.8v
06
Dimension
Thickness/Height
59mm
Width
90.5mm
Length
166.5mm
07
Weight
730g
08
Operating Temperature
Charging
-20℃~+45℃ (-4℉~+113℉)
09
Protection
Over-Charge/Over-Discharge/Over-Current/Short-Circuit
10
LEDs Indication
5-LED(100%、 80%'、60%、40%、20%)
11
Typical Runtimes
3 hours @ 30W
12
Applicable Chargers
ANC-2M
13
Maximum Discharge Current
6A
14
Other Major Features
CE-Certified,Rain-Proof,Impact-Resistant,DC Power Jack

AN-L130R

(1) Integrate SBS-Compliance Gas Gauge IC ...

AN-L200R

(1) Integrate SBS-Compliance Gas Gauge IC ...

AN-L100E

(1) Integrate SBS-Compliance Gas Gauge IC ...

AN-L130E

(1) Integrate SBS-Compliance Gas Gauge IC ...

AN-L200E

(1) Integrate SBS-Compliance Gas Gauge IC ...
