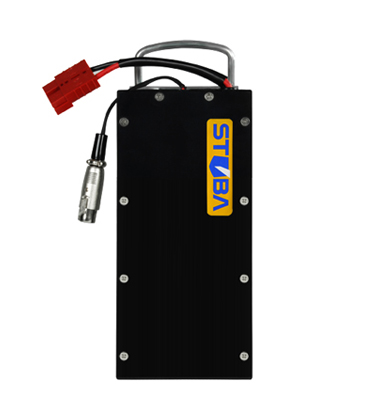

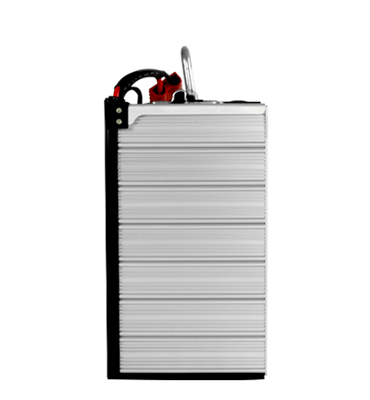

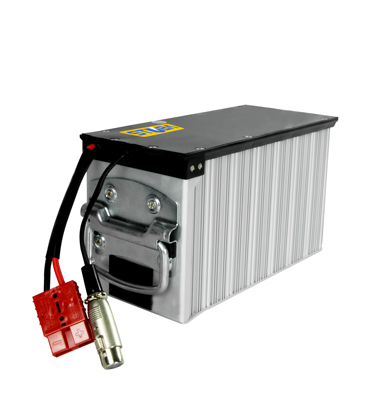

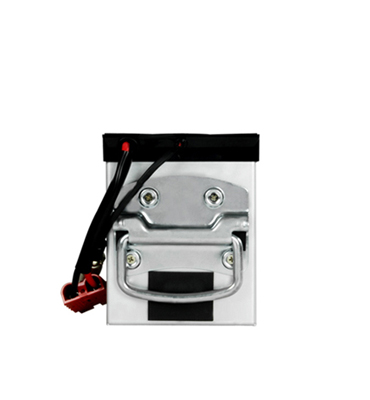

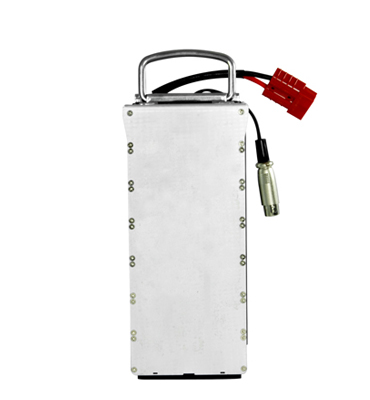

ASP-48020-LP



(1) TES & UN38.3 Certification

(2) Nominal Voltage: 48 V

(3) Safety technologies with STOBA

(4) Key-Switch to control power consumption in idle mode

(5) Removable

(6) Application:1KW~2KW E-scooter


01
Model No.
ASP-48020-LP
02
Component Cell
7799130N w/STOBA in side
03
Connection Structure
13S2P
04
Positive Material
LiCoxNiyMnzO
05
Typical Capacity
20A
06
Cycle Life
800
07
Voltage
Average
48V
Max.
54.6V
Min.
42.0V
08
Dimension
Thickness/Height
150.0 mm
Width
116.9 mm
Length
259.0 mm
09
Weight
<8KG
10
Energy/Rated Capacity
1KWh
11
Charge
Max.Current
10A
12
Operating Temperature
Charging
0~45℃
Discharging
-20~55℃
13
Storage Temperature
-20~40℃
14
Humidity Range
< RH 45~85%
15
Battery Management System
Signal board with switch
