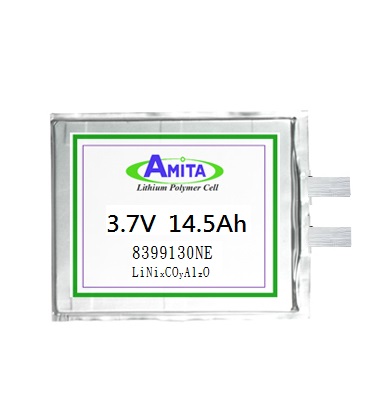

8399130NE



15Ah/ LiNixCOyAlzO


    01
    Model No.
    8399130NE
    02
    Positive Material
    LiNixCoyAlzO
    03
    Typical Capacity
    15Ah (14.5Ah min.)
    04
    Cycle Life
    1C-1C RT > 700, SOH at 70%
    05
    Voltage
    Nominal
    3.7V
    Max.
    4.2V
    Min.
    2.8V
    06
    Dimension
    Thickness
    8.3 mm
    Width
    98.0 ± 1.0 mm
    Length
    130.0 ± 1.0 mm
    07
    Weight
    <235g
    08
    Initial Internal Resistance
    <4mΩ, 25℃
    09
    Energy/Rated Capacity
    55.6 Wh
    10
    Energy Density
    by Weight
    235
    by Volume
    521
    11
    Charge
    Max.C-rate
    1C
    12
    Discharge
    Max. Continuous C-rate
    1C
    13
    Operating Temperature
    Charging
    0~55℃ *Operating Temperature will different because of different using condition*
    Discharging
    -20~55℃
    14
    Storage Temperature
    -20~40℃ Within 1 Years
    15
    Humidity Range
    RH45~85% Within 1 Years

    ...
