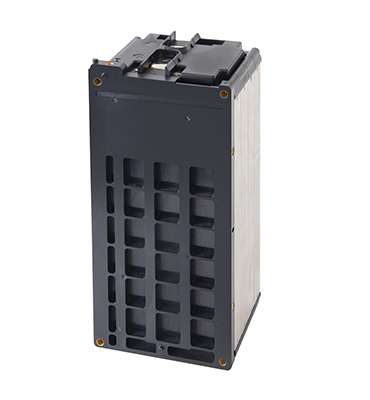

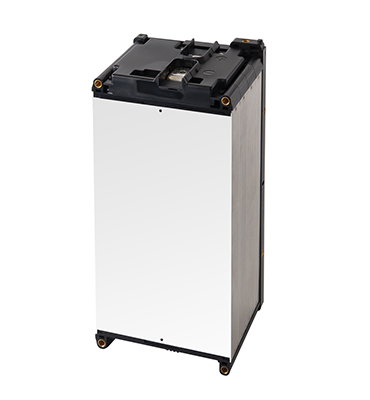

EA-001



(1) Module products

(2) For 24V, 48V systems

(3) High Charge/discharge current

(4) Current interruption device as mechanical protection.
•Own Intelligent Property

(5) Battery management unit
•Over charge signal
•Over charge release signal
•Over Temp at charge signal
•Over Temp release at charge signal
•Over Temp at discharge signal
•Over Temp release at charge signal

(6) Ideal product for EV application


    01
    Model No.
    EA-001
    02
    Component Cell
    120155250NH02
    03
    Connection Structure
    7S1P
    04
    Positive Material
    LiCoxNiyMnzO
    05
    Typical Capacity
    43Ah
    06
    Cycle Life
    3C1C >3000
    07
    Voltage
    Average
    25.2V
    Max.
    29.4V
    Min.
    16.8V
    08
    Weight
    8.05 Kg
    09
    Energy/Rated Capacity
    1.08 KWh
    10
    Charge
    Max.Current
    8.8A / 176A
    11
    Discharge
    Max. Continuous Current
    8.8A
    Transient Peak Current
    176A
    12
    Operating Temperature
    Charging
    0~55℃
    Discharging
    0~55℃
    13
    Storage Temperature
    0~45℃
    14
    Humidity Range
    < RH 45~85%
    15
    Battery Management Unit
    Yes
    16
    Current Interruption Device
    no
    17
    Battery Pack Status
    Core Pack ready

    ...
